Southern Ontario Locomotive Restoration Society |
|
WCR 56738 - Side Dump Hopper Car
WCR56738 delivered in interchange to the OSR by the GEXR, Guelph, Ontario, July 6th, 2014, Photo by Carson Wiebe

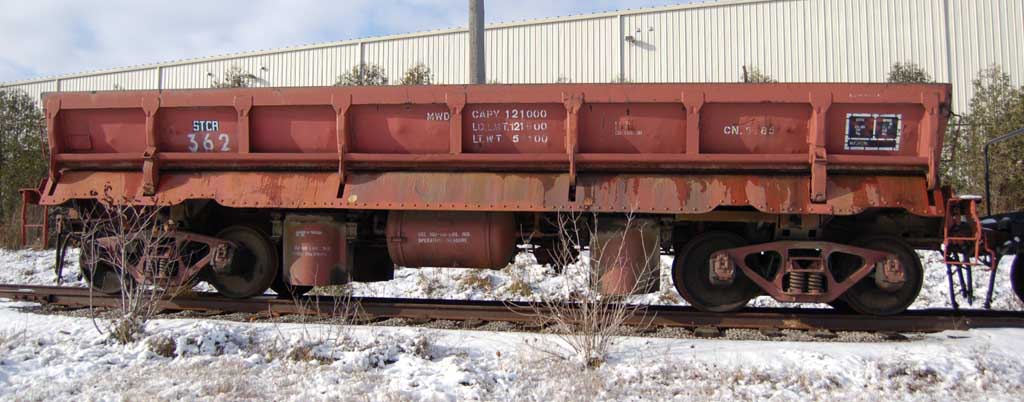

St. Jacobs, Ontario, November 27th, 2007, Photo by Carson Wiebe
| Initial | WCR | Draft Gear | ||
| Number | 56738 | Inside Length | 38' 6" | |
|
Type |
Air Dump Hopper |
Inside Width | 9' 8" | |
|
AAR Car Type Code |
MWD | Inside Height | 3' 11" | |
| Load Limit | 121,900 | Outside Length | 44' 9" | |
| Max Weight on Rail | Extreme width | 10' 8" | ||
| LT. WT | 55,100 | Extreme Height | 8' 1" | |
| Cu Ft Capacity | 810 |
Height of extreme width |
8' 1" | |
| Gal. Capacity | Compartments | 1 | ||
| Plate Clearance | B |
Present Use |
||
|
Mechanical Designation |
||||
| Built By | National Steel Car | Built | 10/58 | |
| Number Built | 85 | Re-Built | ||
|
Date Acquired |
1991 |
On Loan from From |
Don F.Broadbear | |
| Previous Road | Canadian National Railway | Previous Car Num |
CN 56738 |
|
| Don F.Broadbear |
DFB 362 |
|||
| St. Thomas Central Railway | STCR 362 |
July 7th, 2014
|
|||
|
|||
|
