LTTX 142283 Flat Car with Log Bunks
| Initial | LTTX | Draft Gear | 15 | |
| Number | 142283 | Inside Length | ||
|
Type |
Flat Car |
Inside Width | 9' 3" | |
|
AAR Car Type Code |
F326 | Inside Height | ||
| Load Limit | 197,800 lbs. | Outside Length | 94' 8" | |
| Max Weight on Rail | 286,000 lbs. | Extreme width | 9' 10" | |
| LT. WT. | 88,200 lbs. | Extreme Height | 14' 6" | |
| Cu. Ft. Capacity |
Height of extreme width |
14' 6" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
89' 4" | |
|
Mechanical Designation |
FMS | Owner Class | NH90AT | |
| Built By |
|
Built | ||
| Number Built | Re-Built |

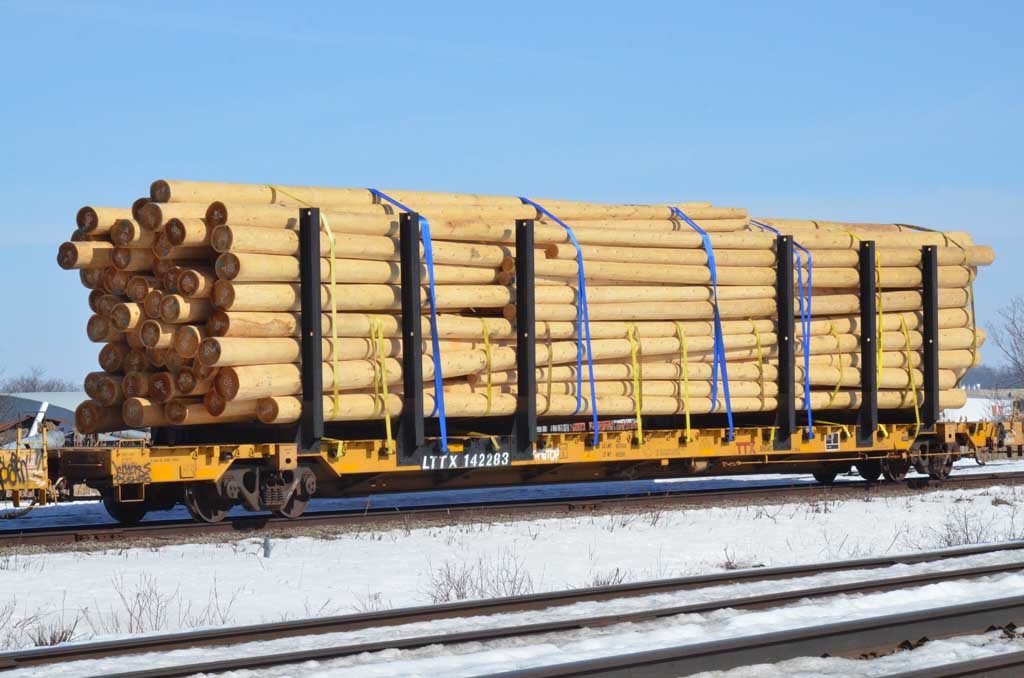

Kitchener, Ontario, 3/11/2014, Photo by Carson Wiebe
|
|||
|
|||
|
