SJTX 1005 Flat Car with
Log Bunks |
|
Initial |
SJTX |
|
Draft Gear |
15 |
|
Number |
1005 |
|
Inside Length |
|
|
Type |
Flat Car
with removable log bunks |
|
Inside Width |
9' 2" |
|
AAR
Car Type Code |
F426 |
|
Inside Height |
|
|
Load Limit |
210,900 lbs. |
|
Outside Length |
94' 8" |
|
Max Weight on Rail |
286,000 lbs. |
|
Extreme width
|
10' 4" |
|
LT. WT. |
75,100 lbs. |
|
Extreme Height |
14' 2" |
|
Cu. Ft. Capacity |
|
|
Height of extreme width |
14' 2" |
|
Gal. Capacity |
|
|
Compartments |
|
|
Plate Clearance |
C |
|
Platform Length |
89' 4" |
|
Mechanical
Designation |
FMS |
|
Lessor |
Greebrier Railcar
Leasing, Inc |
|
Built By |
|
|
Built |
11-77 / Ex Autorack |
|
Number Built |
17 |
|
Re-Built |
04-07 |
|
|
|
 |
|

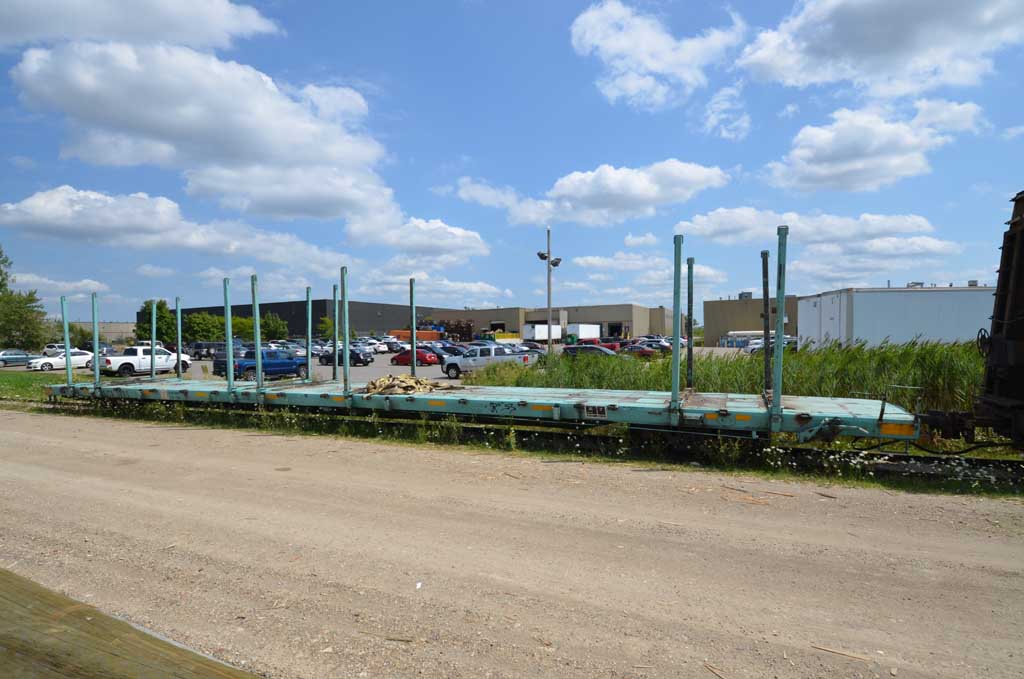

Guelph,
Ontario, 8/16/2019, Carson Wiebe |
 |
|

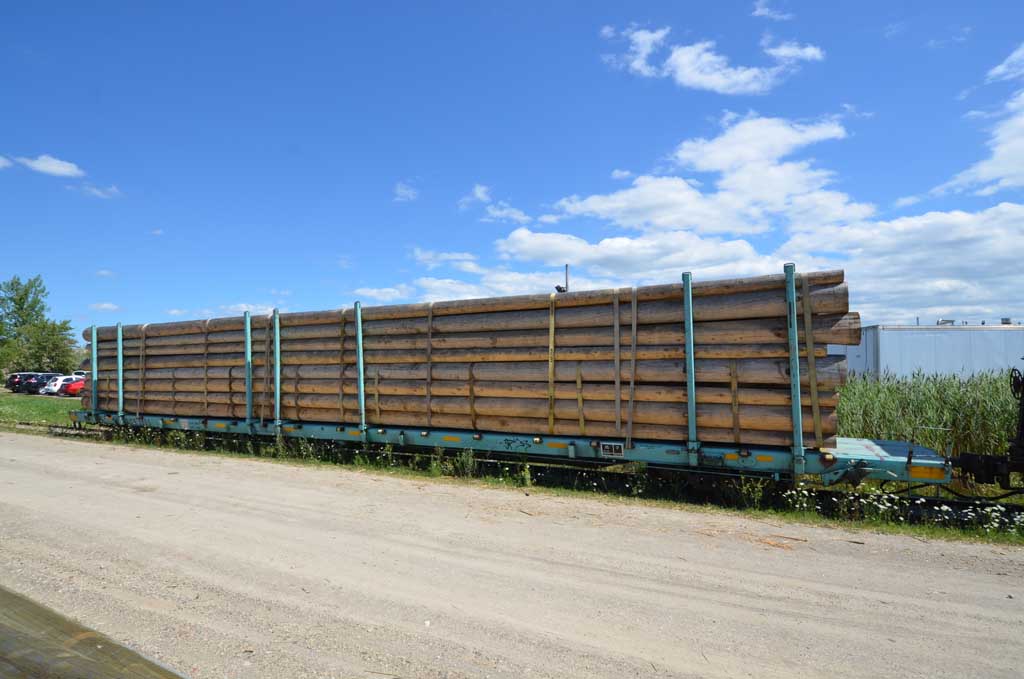

Guelph,
Ontario, 8/14/2019, Carson Wiebe |
