| TTX Company | ||
|
|
|
|
||
| TTX Company | ||
|
|
QTTX 132011 - Heavy Duty Flat
| Initial | QTTX | Draft Gear | 15 | |
| Number | 132011 | Inside Length | ||
|
Type |
Flat Car |
Inside Width | 10' 8" | |
|
AAR Car Type Code |
F426 | Inside Height | ||
| Load Limit | 231,000 lbs. | Outside Length | 94' 8" | |
| Max Weight on Rail | 315,000 lbs. | Extreme width | 9' 4" | |
| LT. WT | 84,000 lbs. | Extreme Height | 4' 0" | |
| Cu Ft Capacity |
Height of extreme width |
4' 0" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
89' 4" | |
|
Mechanical Designation |
FMS |
Lessor |
||
| Built By | Built | 03/2002 | ||
| Number Built | 50 | Re-Built | ||
| Previous Road | Previous Car Num |

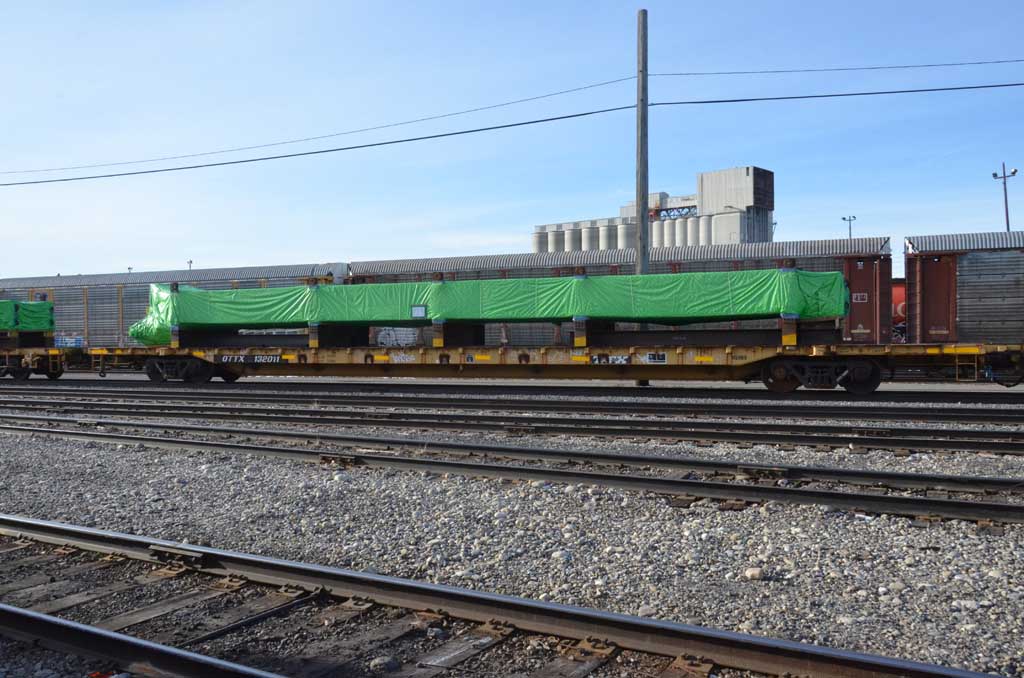

CPR Alyth Yard, Calgary, Alberta, March 5th, 2015, Photo by Carson Wiebe
|
|||
|
|||
|
