QTTX 131140 Heavy Duty Flat Car
Initial QTTX   Draft Gear 15
Number 131140   Inside Length

Type

Flat Car

   Inside Width

AAR Car Type Code

 F402   Inside Height
Load Limit 744,000 lbs.   Outside Length 76' 7"
Max Weight on Rail 945,000 lbs.   Extreme width 10' 8"
LT. WT. 201,000 lbs.   Extreme Height 4' 7"
Cu. Ft. Capacity

Height of extreme width

 4' 7"
Gal. Capacity     Compartments
Plate Clearance C

Platform Length

 53'

Mechanical Designation

 FM   Lessor
Built By     Built
Number Built     Re-Built

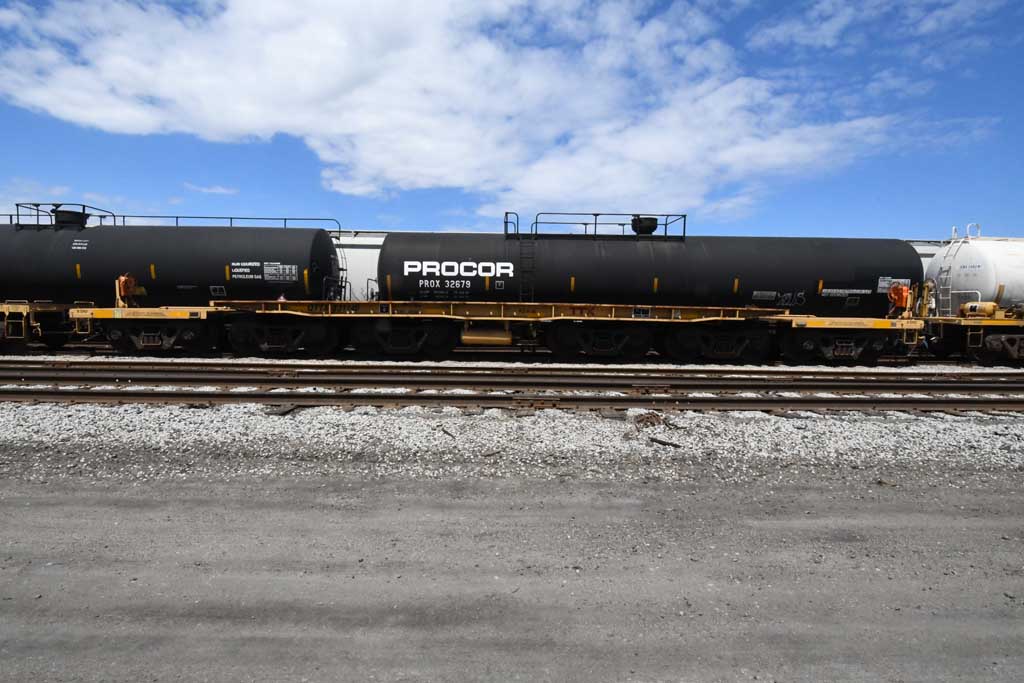

CN London Yard, London, Ontario, 5/6/2021, Photo by Carson Wiebe
