QTTX 131634 Heavy Duty Flat Car |
|
Initial |
QTTX |
|
Draft Gear |
15 |
|
Number |
131634 |
|
Inside Length |
|
|
Type |
Flat Car |
|
Inside Width |
10' 8" |
|
AAR
Car Type Code |
F402 |
|
Inside Height |
|
|
Load Limit |
742,200 lbs. |
|
Outside Length |
76' 7" |
|
Max Weight on Rail |
945,000 lbs. |
|
Extreme width
|
10' 8" |
|
LT. WT. |
202,800 lbs. |
|
Extreme Height |
4' 7" |
|
Cu. Ft. Capacity |
|
|
Height of extreme width |
4' 7" |
|
Gal. Capacity |
|
|
Compartments |
|
|
Plate Clearance |
C |
|
Platform Length |
53' |
|
Mechanical
Designation |
FM |
|
Lessor |
|
|
Built By |
National Steel Car |
|
Built |
2001 |
|
Number Built |
|
|
Re-Built |
|
|
 |
|
|
|
|
|
 |
|

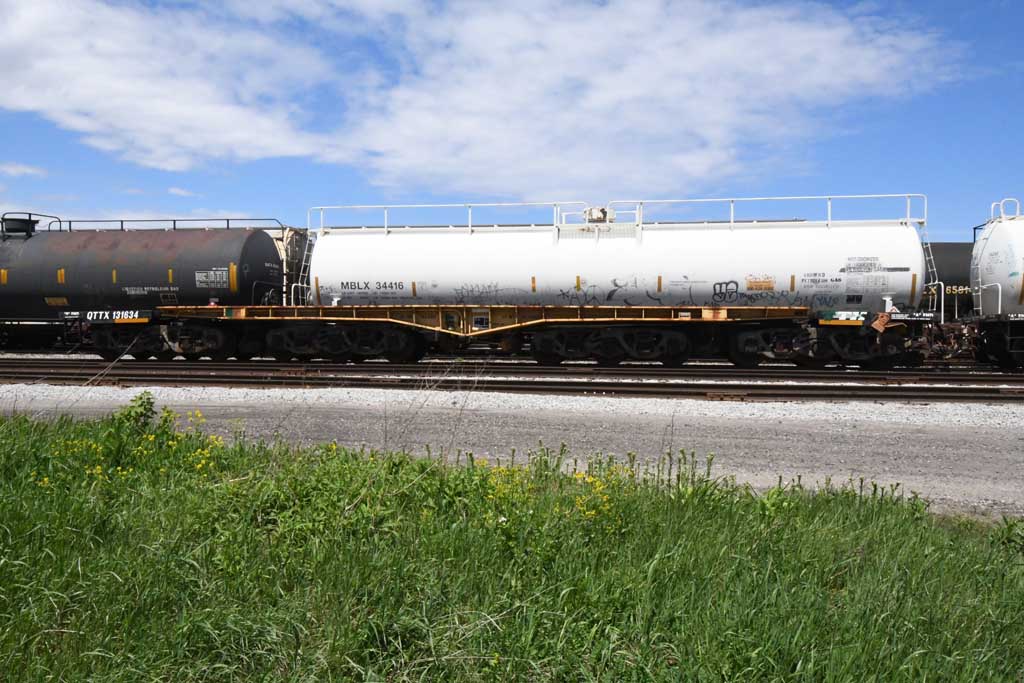

CN London Yard,
London,
Ontario,
5/6/2021,
Photo by Carson Wiebe |
 |
|

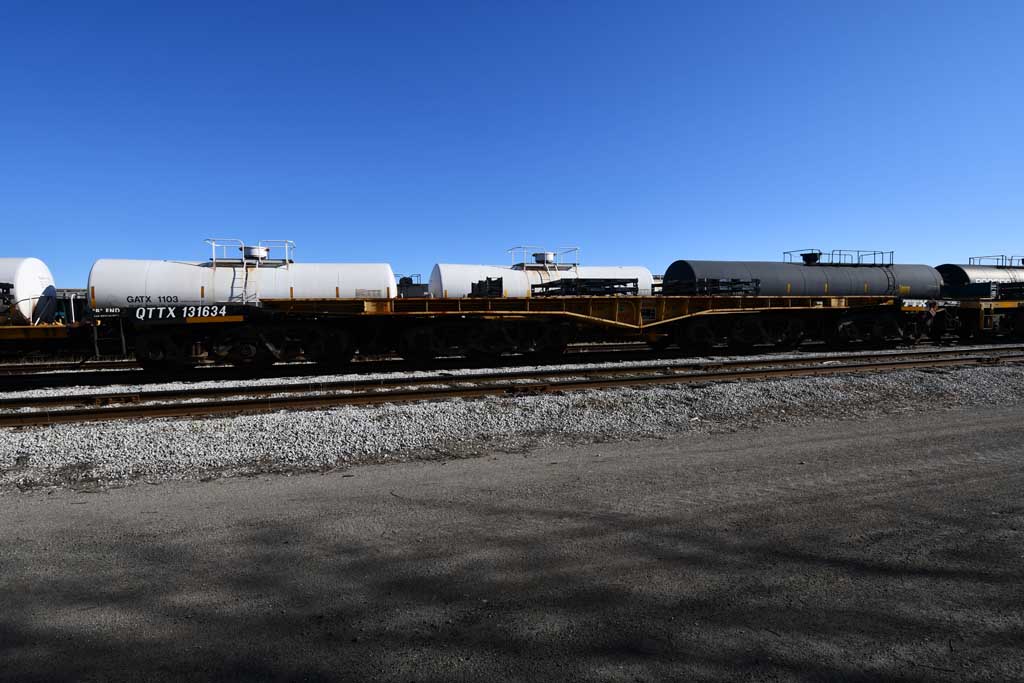

CN London Yard,
London,
Ontario, 4/3/2020, Carson Wiebe |
 |
|
CN London Yard,
London,
Ontario, 10/17/2017, Photo by Carson Wiebe |
