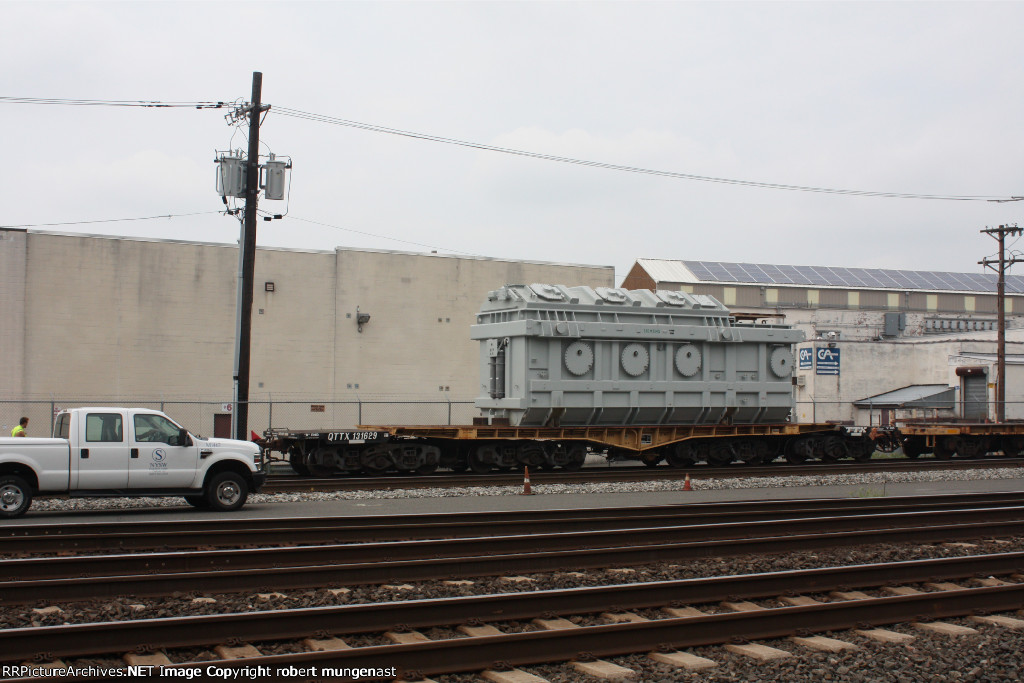

QTTX 131629 Heavy Duty Flat
| Initial | QTTX | Draft Gear | 15 | |
| Number | 131629 | Inside Length | ||
|
Type |
Flat Car |
Inside Width | 10' 8" | |
|
AAR Car Type Code |
F402 | Inside Height | ||
| Load Limit | 742,900 lbs. | Outside Length | 76' 7" | |
| Max Weight on Rail | 945,000 lbs. | Extreme width | 10' 8" | |
| LT. WT. | 202,100 lbs. | Extreme Height | 4' 7" | |
| Cu. Ft. Capacity |
Height of extreme width |
4' 7" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
53' | |
|
Mechanical Designation |
FM | Lessor | ||
| Built By | National Steel Car | Built | 2001 | |
| Number Built | Re-Built |
|
|||
|
|||
|
|
|||
|
|||
|
