| TTX Company | ||
|
|
|
|
||
| TTX Company | ||
|
|

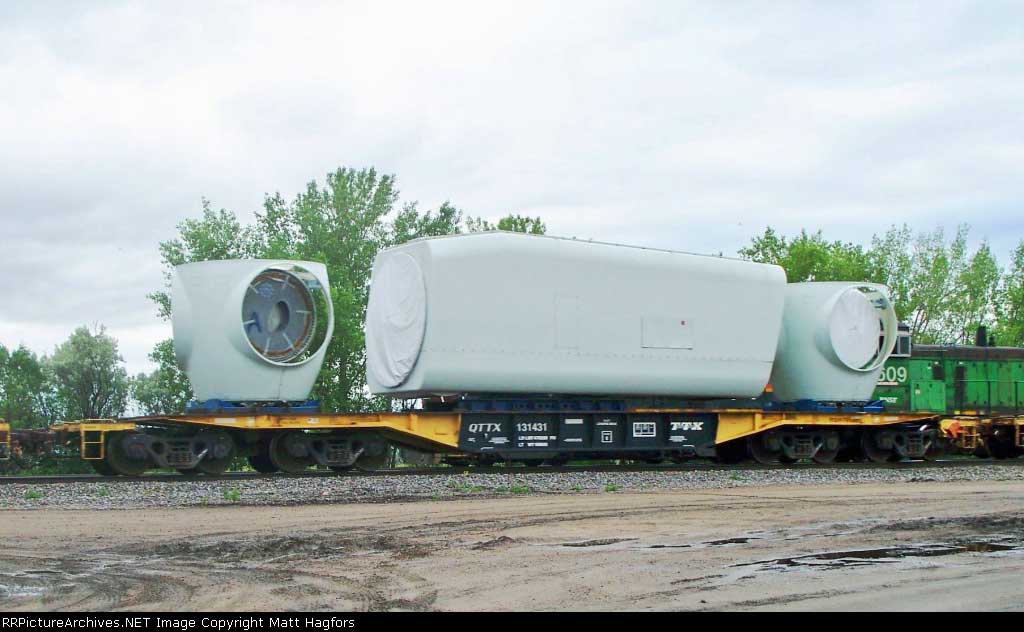

QTTX 131431 Heavy Duty Flat
| Initial | QTTX | Draft Gear | 15 | |
| Number | 131431 | Inside Length | ||
|
Type |
Flat Car |
Inside Width | ||
|
AAR Car Type Code |
F423 | Inside Height | ||
| Load Limit | 470,200 lbs. | Outside Length | 84' 10" | |
| Max Weight on Rail | 630,000 lbs. | Extreme width | 10' 2" | |
| LT. WT. | 159,800 lbs. | Extreme Height | 4' 2" | |
| Cu. Ft. Capacity |
Height of extreme width |
4' 2" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
70' | |
|
Mechanical Designation |
FMS | Lessor | ||
| Built By | Trinity Industries Inc. | Built | 12/01-05/02 | |
| Trinity Lot # | 2864 | TTX Contract # | T-3001-P | |
| Number Built | 30 | Re-Built |
Dilworth, MN, 6/12/2010, Matt Hagfors
, 2014
|
|||
|
|||
|
