QTTX 131425 - Heavy Duty Flat
| Initial | QTTX | Draft Gear | 15 | |
| Number | 131425 | Inside Length | ||
|
Type |
Heavy Duty Flat Car |
Inside Width | ||
|
AAR Car Type Code |
F423 | Inside Height | ||
| Load Limit | 455,700 lbs. | Outside Length | 86' 4" | |
| Max Weight on Rail | 630,000 lbs. | Extreme width | 10' 1" | |
| LT. WT | 174,300 lbs. | Extreme Height | 4' 4" | |
| Cu Ft Capacity |
Height of extreme width |
4' 4" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
70' | |
|
Mechanical Designation |
FMS | TTX Contract | T-5000-B | |
| Built By |
Johnstown America Corporation |
Built | 2001 | |
| Number Built | 65 JAC Lot # 1400-889 | Re-Built |

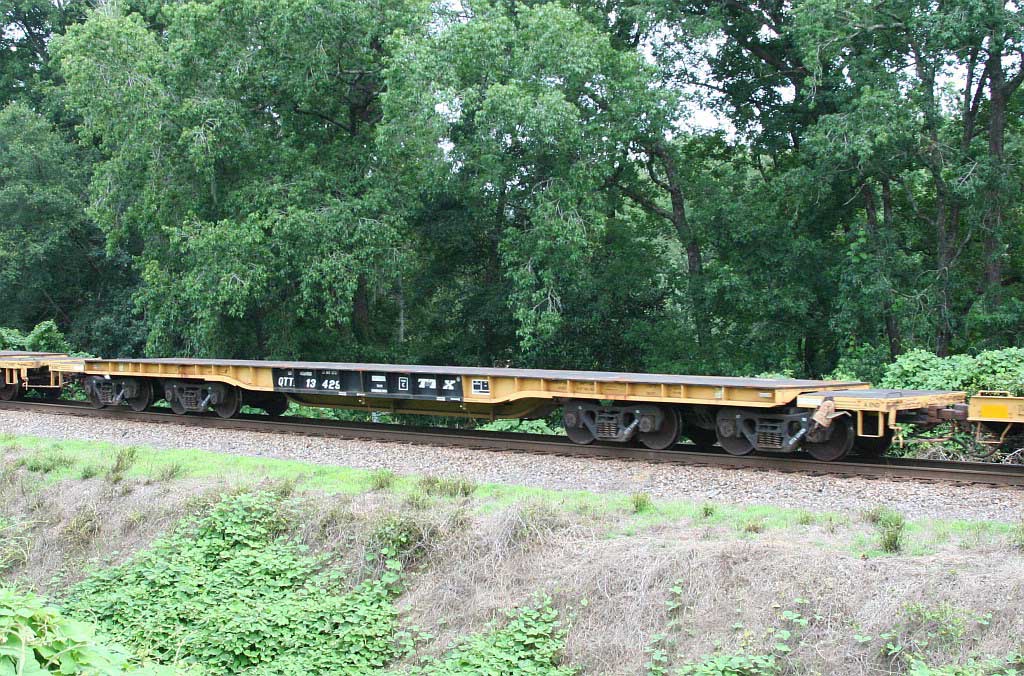

Tallahassee, FL, 6/13/2009, G Gerard
September 5th, 2013
|
|||
|
|||
|
