QTTX 131316 - Heavy Duty Flat Car
Initial QTTX   Draft Gear 15
Number 131316   Inside Length

Type

Heavy Duty Flat Car

  Inside Width

AAR Car Type Code

F423   Inside Height
Load Limit 469,100 lbs.   Outside Length 84' 10"
Max Weight on Rail 630,000 lbs.   Extreme width 10' 2"
LT. WT 160,900 lbs.   Extreme Height 4' 4"
Cu Ft Capacity

Height of extreme width

4' 4"
Gal. Capacity     Compartments
Plate Clearance  C

Platform Length

70'

Mechanical Designation

FMS
Built By



  Built
Number Built 10   Re-Built

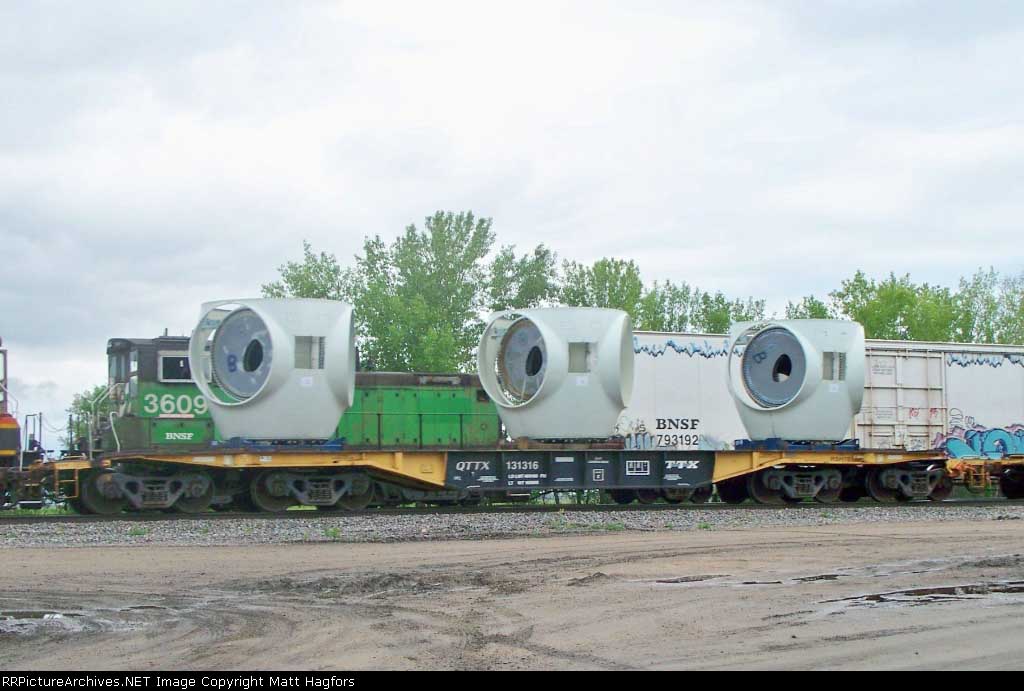

Dilworth, MN, 6/12/2010, Matt Hagfors
