QTTX 131255 - Heavy Duty Flat Car
Initial QTTX   Draft Gear 15
Number 131255   Inside Length

Type

Heavy Duty Flat Car

  Inside Width

AAR Car Type Code

F423   Inside Height
Load Limit 460,000 lbs.   Outside Length 86' 4"
Max Weight on Rail 630,000 lbs.   Extreme width 10' 1"
LT. WT 170,000 lbs.   Extreme Height 4' 4"
Cu Ft Capacity

Height of extreme width

4' 4"
Gal. Capacity     Compartments
Plate Clearance  C

Platform Length

70'

Mechanical Designation

FMS
Built By



  Built Aug-Dec 1998
Number Built 10   Re-Built

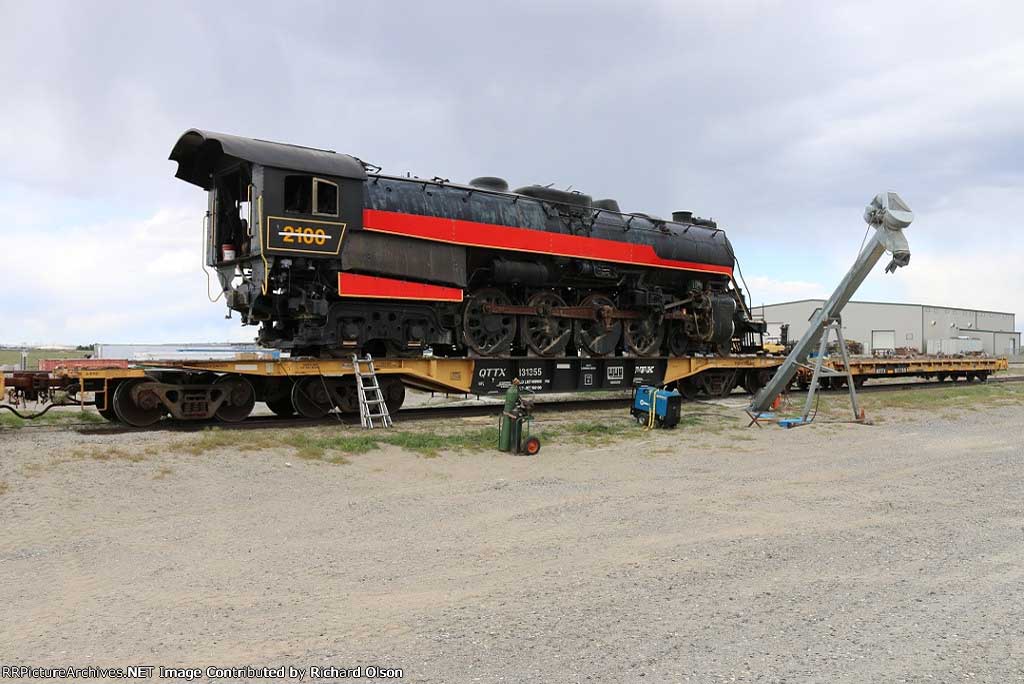

Richland, WA, 4/11/2015
