QTTX 131049 - Heavy Duty Flat
Car |
Initial |
QTTX |
|
Draft Gear |
15 |
Number |
131049 |
|
Inside Length |
|
Type |
Heavy Duty Flat Car |
|
Inside Width |
10' 8" |
AAR
Car Type Code |
F402 |
|
Inside Height |
|
Load Limit |
438,900 lbs. |
|
Outside Length |
73' 8" |
Max Weight on Rail |
572,000 lbs. |
|
Extreme width
|
10' 8" |
LT. WT |
133,100 lbs. |
|
Extreme Height |
7' 5" |
Cu Ft Capacity |
|
|
Height of extreme width |
4' 2" |
Gal. Capacity |
|
|
Compartments |
|
Plate Clearance |
C |
|
Platform Length |
55' |
Mechanical
Designation |
FM |
|
|
|
Built By |
Difco Inc., Findlay, Ohio |
|
Built |
May 1995 |
Number Built |
5 |
|
Re-Built |
|
|
|
|

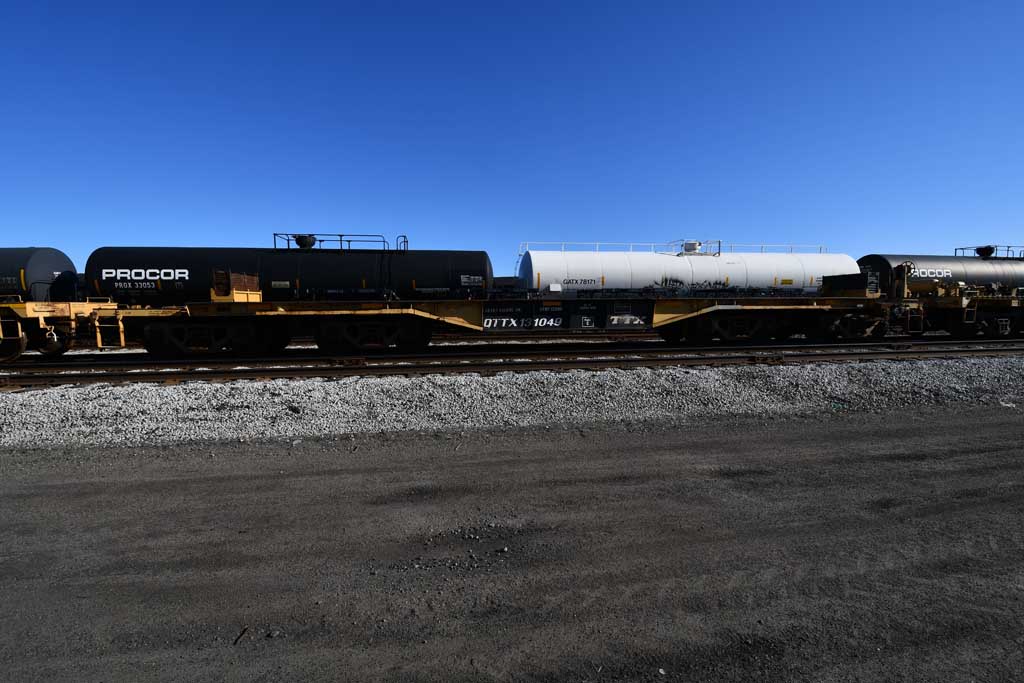

CN London Yard,
London,
Ontario, 4/3/2020, Carson Wiebe |
|

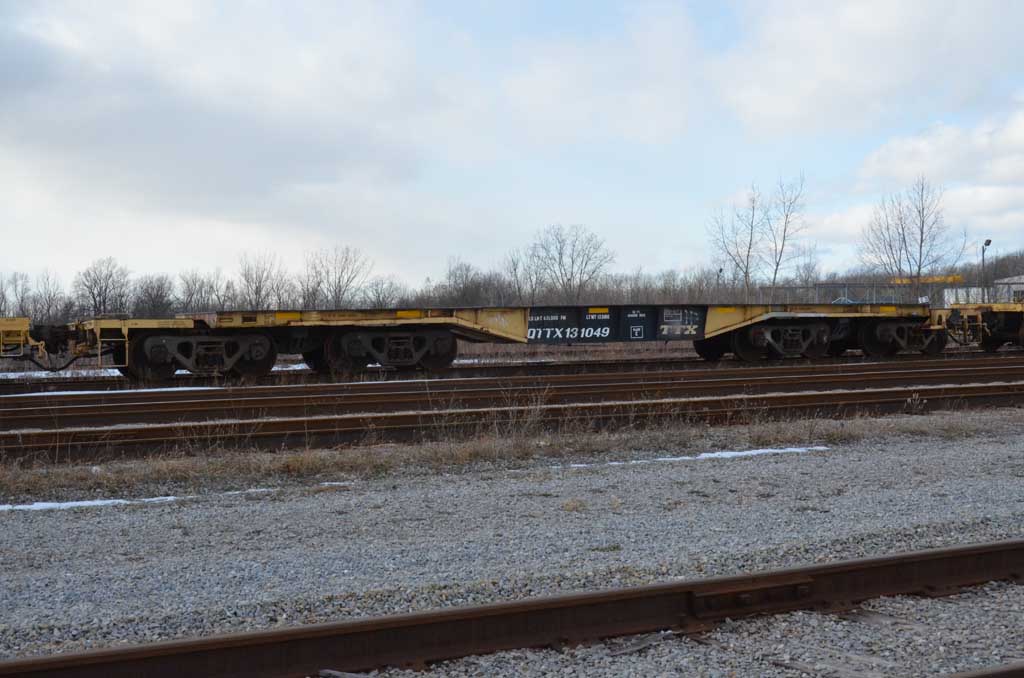

Mile 3, CN Thorold Spur, Thorold, Ontario,
December 30th, 2013, Photo by Carson Wiebe
|
