QTTX 131047 - Heavy Duty Flat
| Initial | QTTX | Draft Gear | 15 | |
| Number | 131047 | Inside Length | ||
|
Type |
Heavy Duty Flat Car |
Inside Width | 10' 8" | |
|
AAR Car Type Code |
F402 | Inside Height | ||
| Load Limit | 438,900 lbs. | Outside Length | 73' 8" | |
| Max Weight on Rail | 572,000 lbs. | Extreme width | 10' 8" | |
| LT. WT | 133,100 lbs. | Extreme Height | 7' 5" | |
| Cu Ft Capacity |
Height of extreme width |
4' 2" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
55' | |
|
Mechanical Designation |
FM | |||
| Built By | Built | May 1995 | ||
| Number Built | 5 | Re-Built |

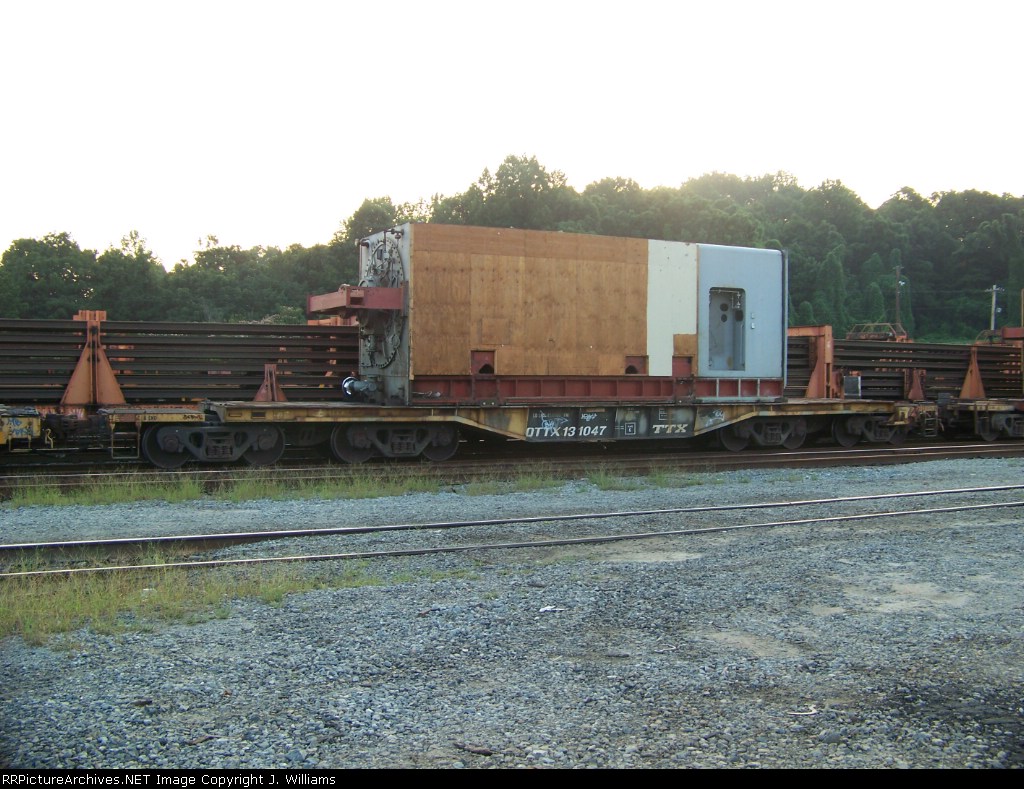

Atlanta, GA, 5/1/2008, J. Williams

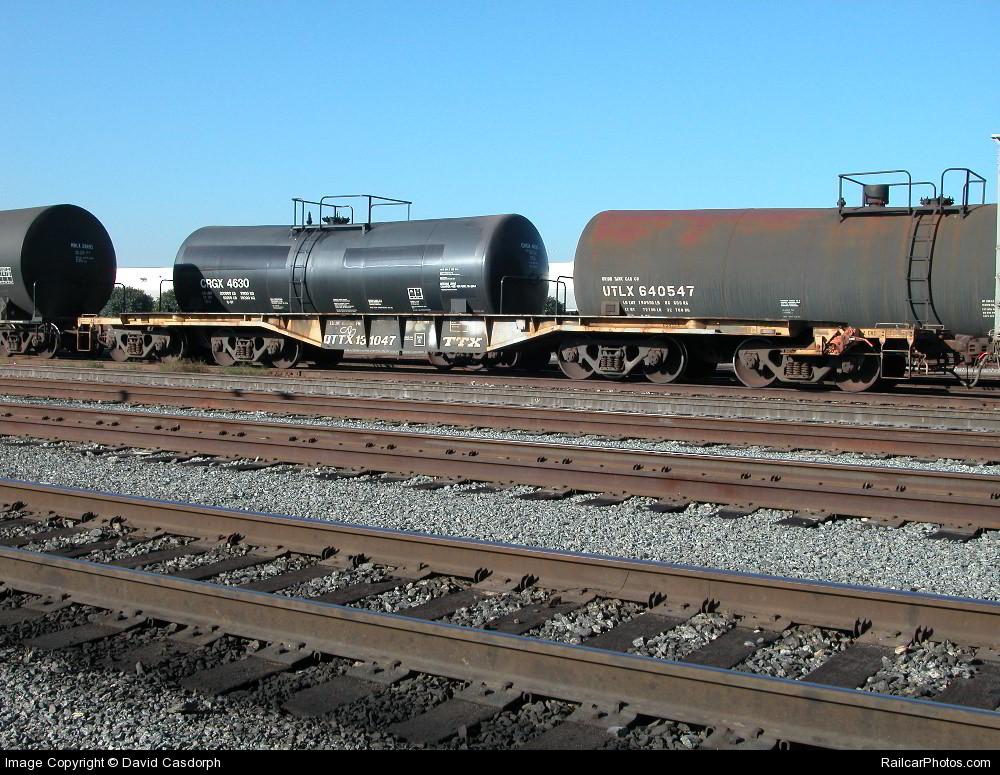

Carson, CA, 11/14/2004, David Casdorph
April 22nd, 2012
|
|||
|
|||
|
