QTTX 131036 Heavy Duty Flat
Car |
|
Initial |
QTTX |
|
Draft Gear |
15 |
|
Number |
131036 |
|
Inside Length |
|
|
Type |
Heavy Duty Flat Car |
|
Inside Width |
10' 8" |
|
AAR
Car Type Code |
F402 |
|
Inside Height |
|
|
Load Limit |
394,500 lbs. |
|
Outside Length |
73' 4" |
|
Max Weight on Rail |
526,000 lbs. |
|
Extreme width
|
10' 8" |
|
LT. WT |
131,500 lbs. |
|
Extreme Height |
7' 5" |
|
Cu Ft Capacity |
|
|
Height of extreme width |
4' 2" |
|
Gal. Capacity |
|
|
Compartments |
|
|
Plate Clearance |
C |
|
Platform Length |
55' |
|
Mechanical
Designation |
FM |
|
|
|
|
Built By |
Difco Inc., Findlay, Ohio |
|
Built |
August - September 1992 |
|
Number Built |
5 |
|
Re-Built |
|
|
|
|
 |
|

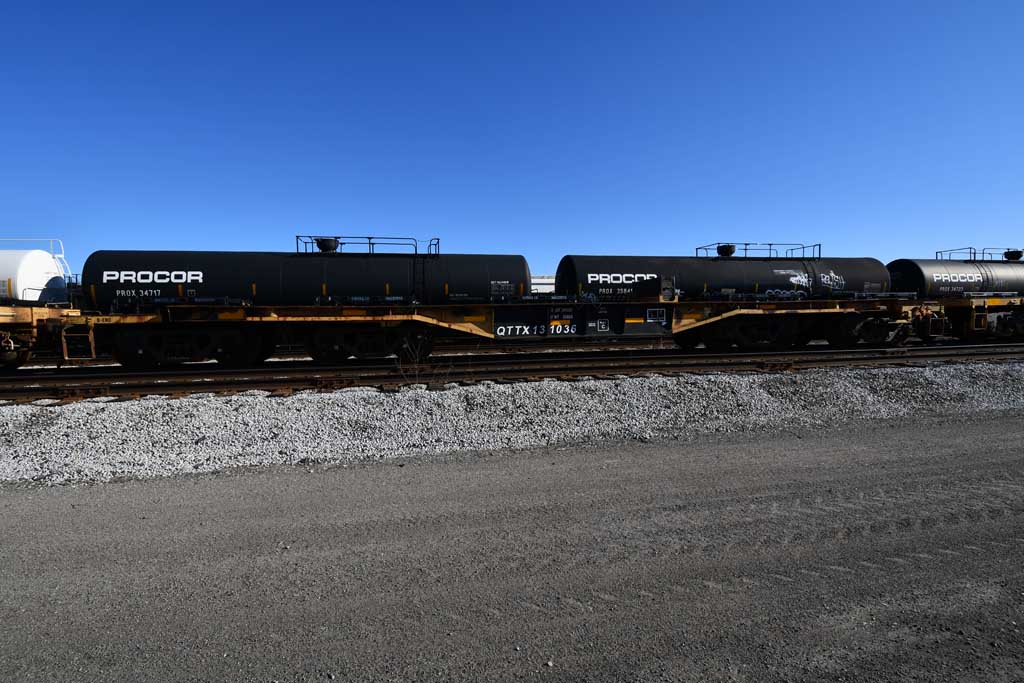

CN London Yard,
London,
Ontario, 4/3/2020, Carson Wiebe |
 |
|

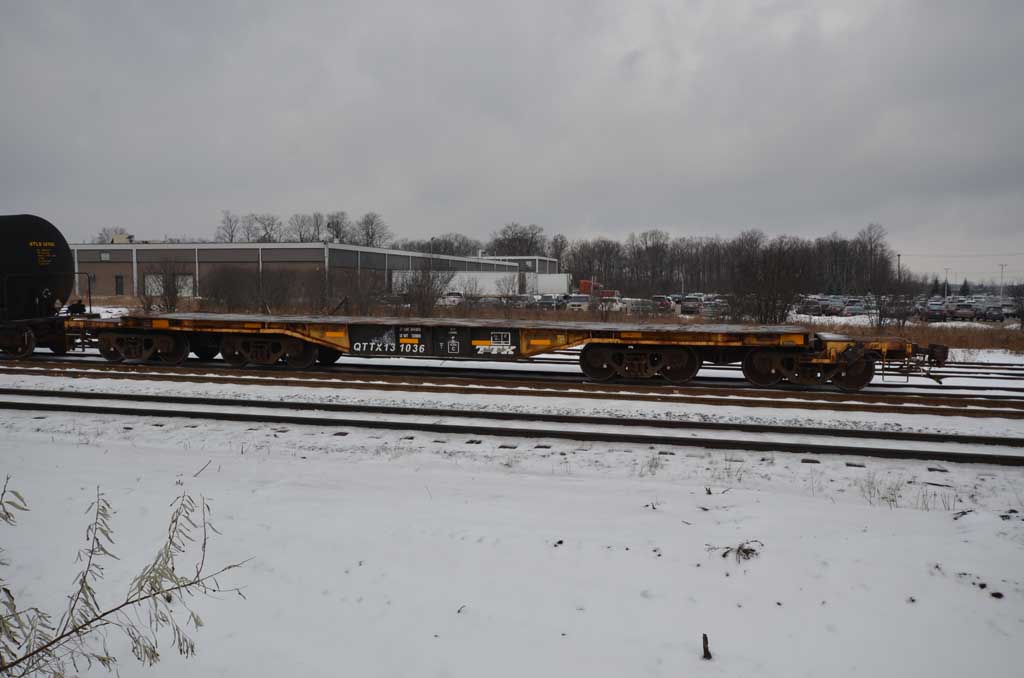

CN Kitchener Yard,
Kitchener, Ontario, 12/4/2019, Photo by Carson Wiebe |
