QTTX 131031 - Heavy Duty Flat Car
Initial QTTX   Draft Gear 15
Number 131031   Inside Length

Type

Flat Car

  Inside Width

AAR Car Type Code

F402   Inside Height
Load Limit 393,600 lbs.   Outside Length 73' 4"
Max Weight on Rail 526,000 lbs.   Extreme width 10' 8"
LT. WT. 132,400 lbs.   Extreme Height 7' 5"
Cu. Ft. Capacity

Height of extreme width

4' 2"
Gal. Capacity     Compartments
Plate Clearance C

Platform Length

55'

Mechanical Designation

FM   Lessor
Built By DIFCO, Inc., Findlay, OH   Built Feb. - Apr. 1992
Contract #     Re-Built
Number Built 10   Re-Built By

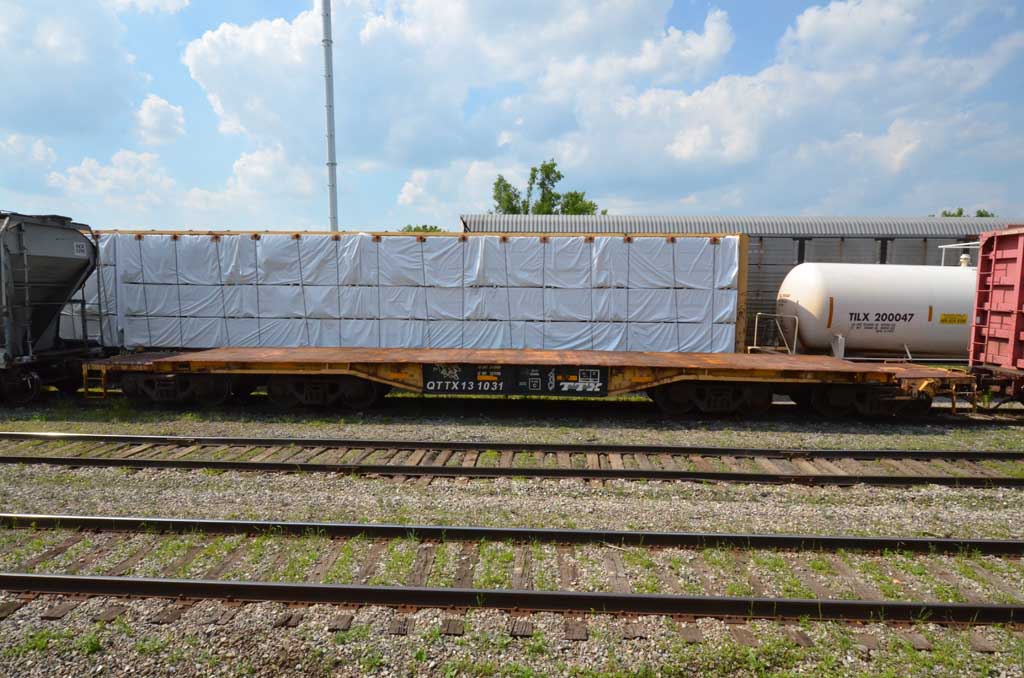

GEXR Kitchener Yard, Kitchener, Ontario, 06/28/2014, Picture by Carson Wiebe
