QTTX 131001 - Heavy Duty Flat Car |
|
Initial |
QTTX |
|
Draft Gear |
15 |
|
Number |
131001 |
|
Inside Length |
|
|
Type |
Flat Car |
|
Inside Width |
|
|
AAR
Car Type Code |
F401 |
|
Inside Height |
|
|
Load Limit |
485,500 lbs. |
|
Outside Length |
66' 4" |
|
Max Weight on Rail |
630,000 lbs. |
|
Extreme width
|
10' 8" |
|
LT. WT |
144,500 lbs. |
|
Extreme Height |
7' 3" |
|
Cu Ft Capacity |
|
|
Height of extreme width |
4' 3" |
|
Gal. Capacity |
|
|
Compartments |
|
|
Plate Clearance |
C |
|
Platform Length |
50' |
|
Mechanical
Designation |
FM |
|
|
|
|
Built By |
Itel Rail
Corporation Chicago, IL |
|
Built |
Aug. -Oct. 1991 |
|
Contract # |
T-4A90-I |
|
Re-Built |
|
|
Number Built |
6 |
|
Re-Built By |
|
|
|
|
|
|
|
 |
|

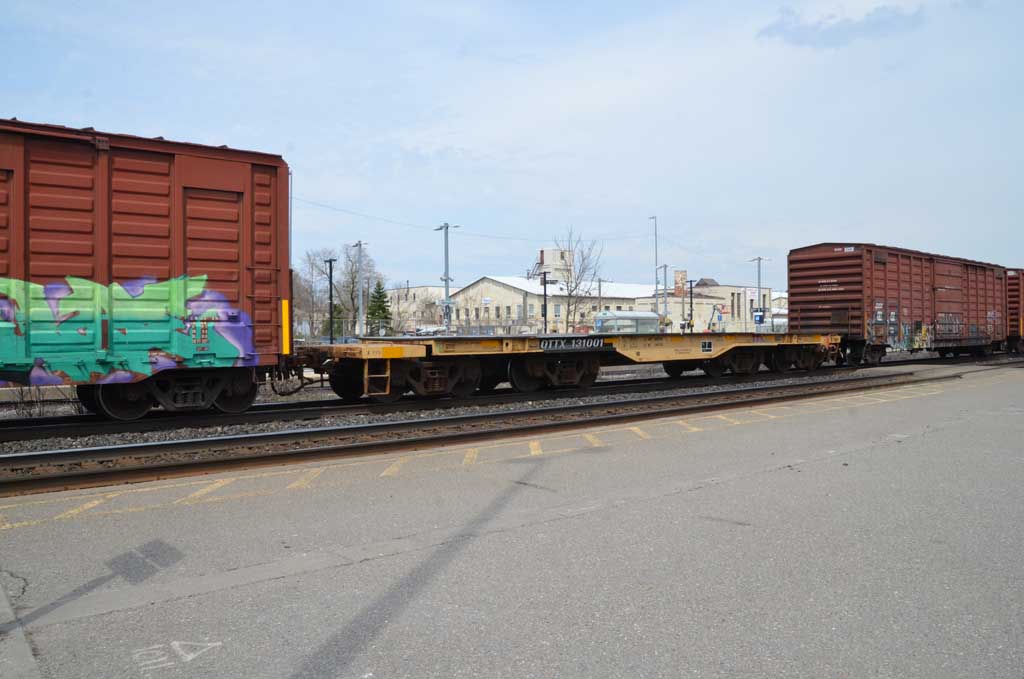

Mile 23.5 CN Halton Sub,
Halton Hills, Ontario, 4/24/2025, Photo by Carson Wiebe |
 |
|

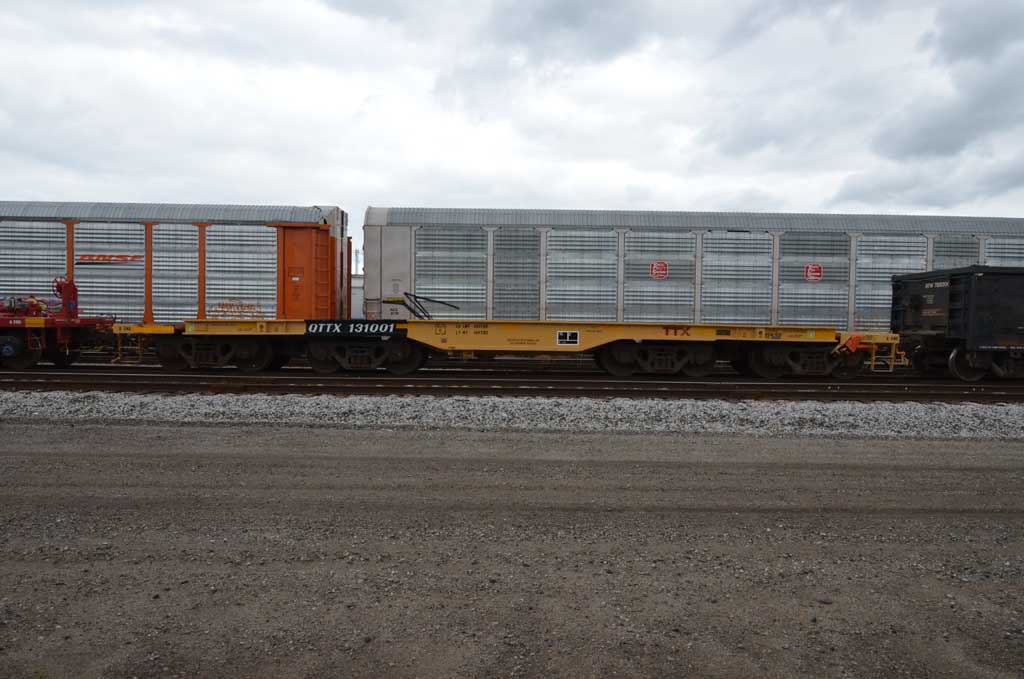

CN London Yard,
London,
Ontario, 8/18/2017, Photo by Carson Wiebe |
