QTTX 131044 - Heavy Duty Flat
| Initial | QTTX | Draft Gear | 15 | |
| Number | 131044 | Inside Length | ||
|
Type |
Heavy Duty Flat Car |
Inside Width | 10' 8" | |
|
AAR Car Type Code |
F402 | Inside Height | ||
| Load Limit | 395,000 lbs. | Outside Length | 73' 4" | |
| Max Weight on Rail | 526,000 lbs. | Extreme width | 10' 8" | |
| LT. WT | 131,000 lbs. | Extreme Height | 7' 5" | |
| Cu Ft Capacity |
Height of extreme width |
4' 2" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
55' | |
|
Mechanical Designation |
FM | |||
| Built By | Built | Feb. - Apr. 1993 | ||
| Number Built | 7 | Re-Built |

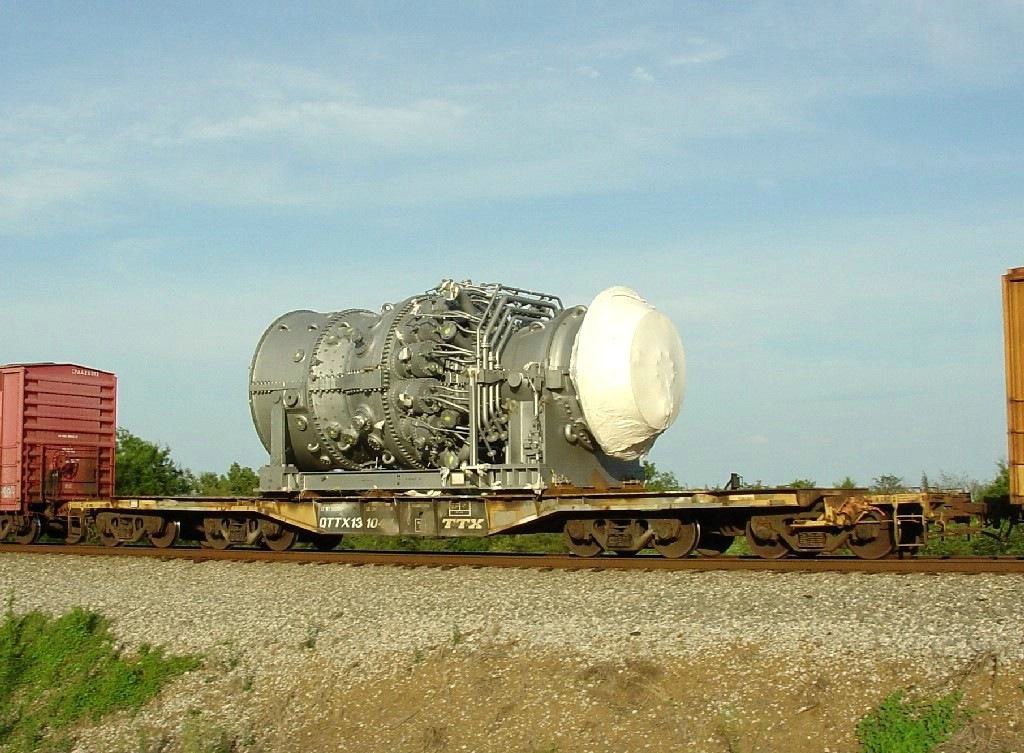

QTTX Flat Car 131044 on CSX Q534, Glendale, KY, 2/2/2008, Kevin Owens

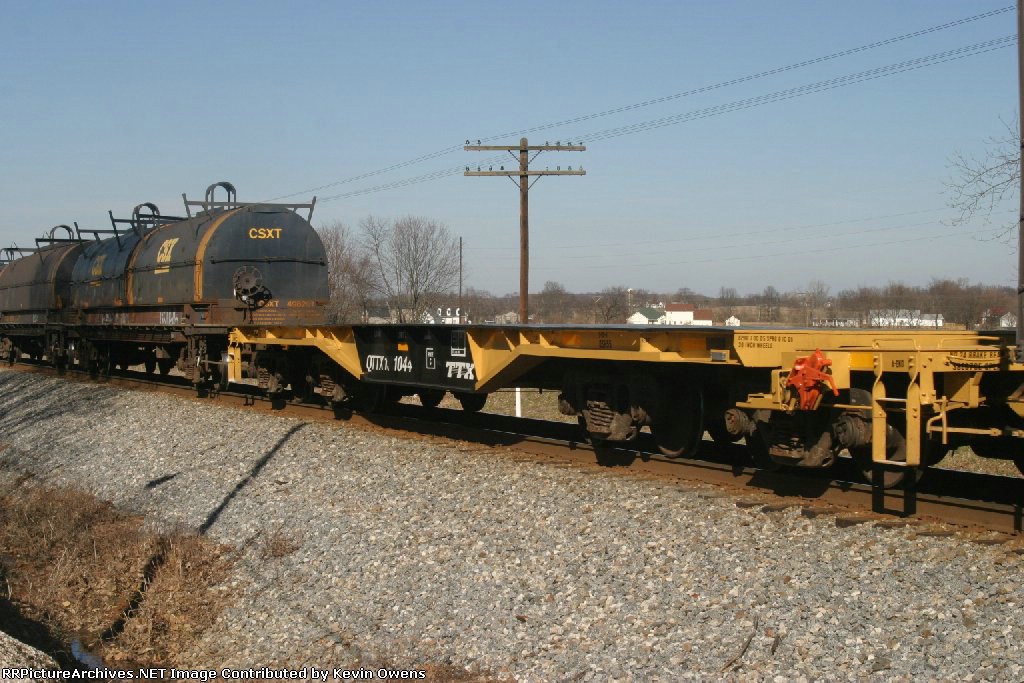

McAlester, OK, 7/17/2005, Mike Bates
April 22nd, 2012
|
|||
|
|||
|
