MCEX 800282 Bulkhead Flat
| Initial | MCEX | Draft Gear | 15 | |
| Number | 800282 | Inside Length | ||
|
Type |
Bulkhead Flat Car with log bunks |
Inside Width | 9' 1" | |
|
AAR Car Type Code |
F273 | Inside Height | ||
| Load Limit | 184,700 lbs. | Outside Length | 81' 4" | |
| Max Weight on Rail | 283,000 lbs. | Extreme width | 10' 8" | |
| LT. WT. | 78,300 lbs. | Extreme Height | 14' 11" | |
| Cu. Ft. Capacity |
Height of extreme width |
14' 3" | ||
| Gal. Capacity | Compartments | |||
| Plate Clearance | C |
Platform Length |
70' 0" | |
|
Mechanical Designation |
FL | Lessor | ||
| Built By |
Bethlehem Johnstown |
Built | 6-91 | |
| Number Built | 54 | Re-Built |
x JTSX 900010 xx UCSX 2042

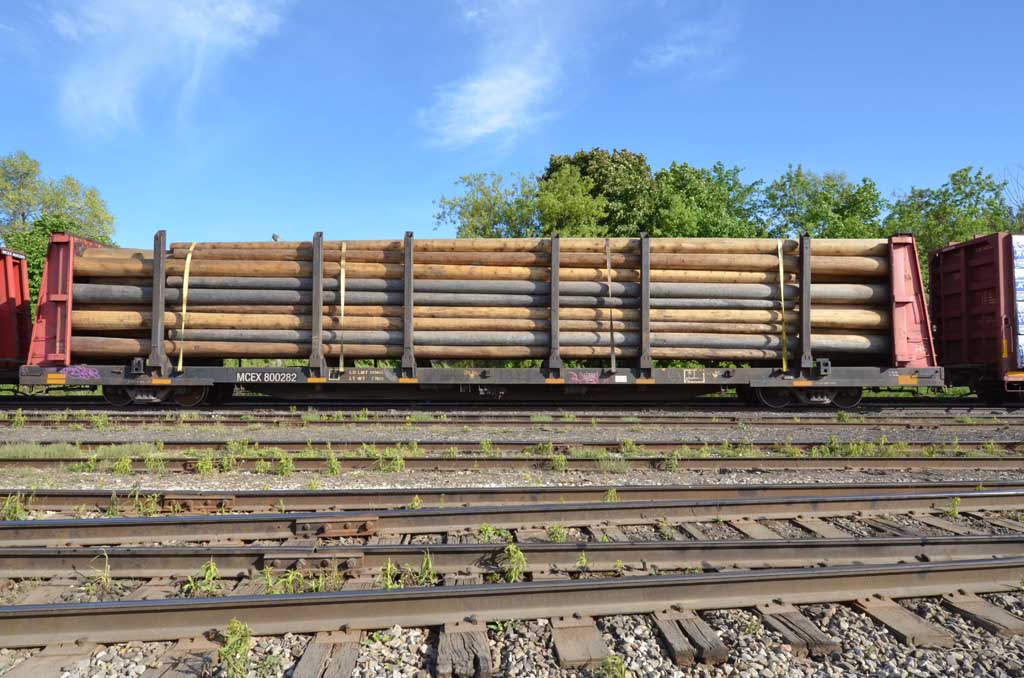

GEXR Yard, Kitchener, Ontario, 5/20/2015, Photo by Carson Wiebe

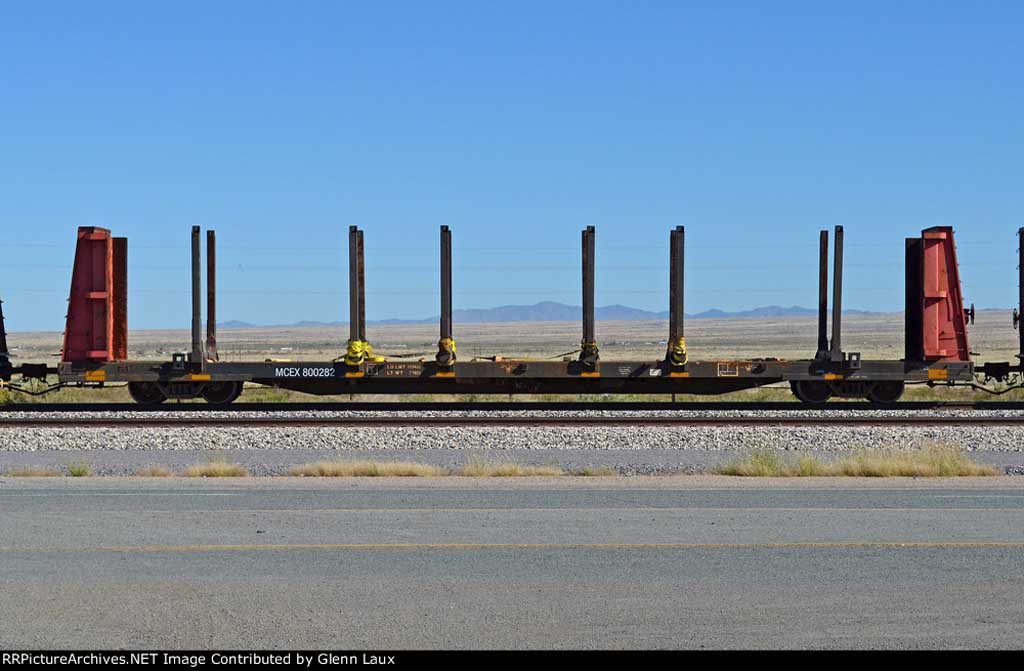

Lordsburg, NM, 10/7/2013, Glenn Laux
|
|||
|
|||
|
