LTTX
141073
Flat Car with Log Bunks |
|
Initial |
LTTX |
|
Draft Gear |
15 |
|
Number |
141073 |
|
Inside Length |
|
|
Type |
Flat Car |
|
Inside Width |
|
|
AAR
Car Type Code |
F326 |
|
Inside Height |
|
|
Load Limit |
193,800 lbs. |
|
Outside Length |
94' 8" |
|
Max Weight on Rail |
286,000 lbs. |
|
Extreme width
|
9' 10" |
|
LT. WT. |
92,200 lbs. |
|
Extreme Height |
14' 6" |
|
Cu. Ft. Capacity |
|
|
Height of extreme width |
14' 6" |
|
Gal. Capacity |
|
|
Platform Length |
89' 4" |
|
Plate Clearance |
C |
|
Platform Width |
9' 3" |
|
Mechanical
Designation |
FMS |
|
Owner Class |
JH90L |
|
Built By |
Johnstown America Corporation |
|
Built |
12/00 |
|
Number Built |
|
|
Re-Built |
|
|
|
|
 |
|

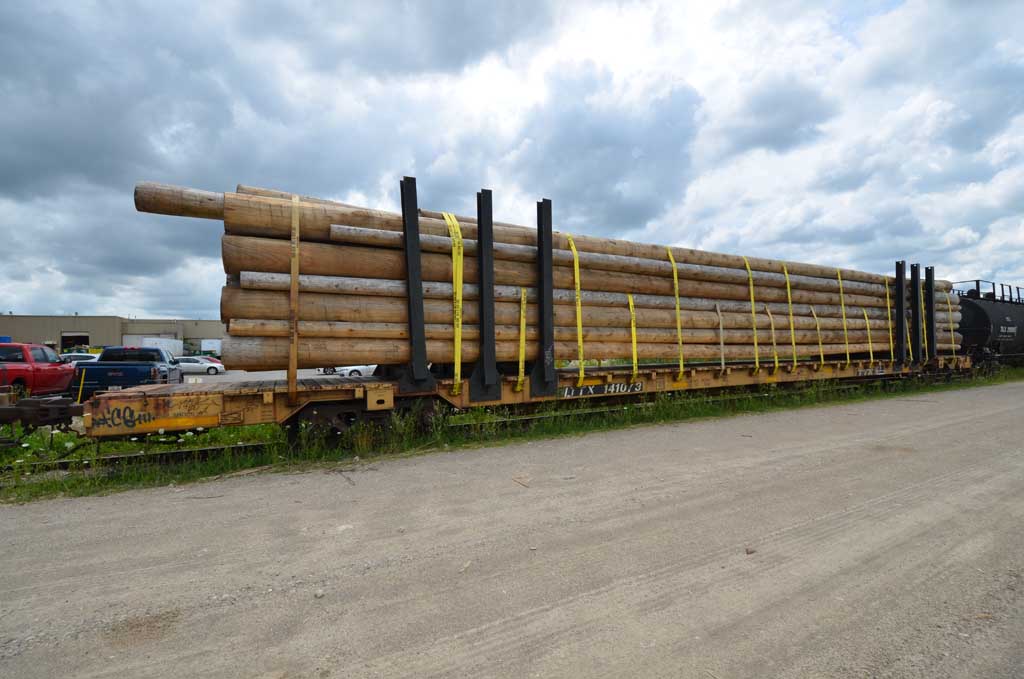

Guelph,
Ontario, 7/22/2019, Carson Wiebe |
 |
|

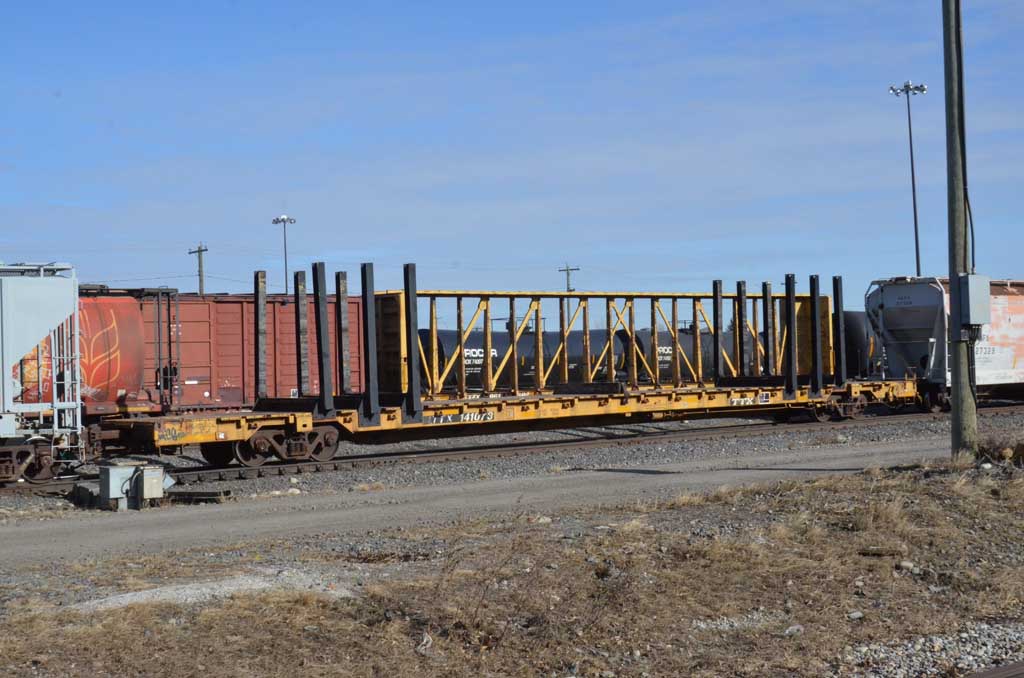

CP Alyth Yard, Calgary,
Alberta,
March 4th, 2015, Photo by Carson
Wiebe |
 |
|

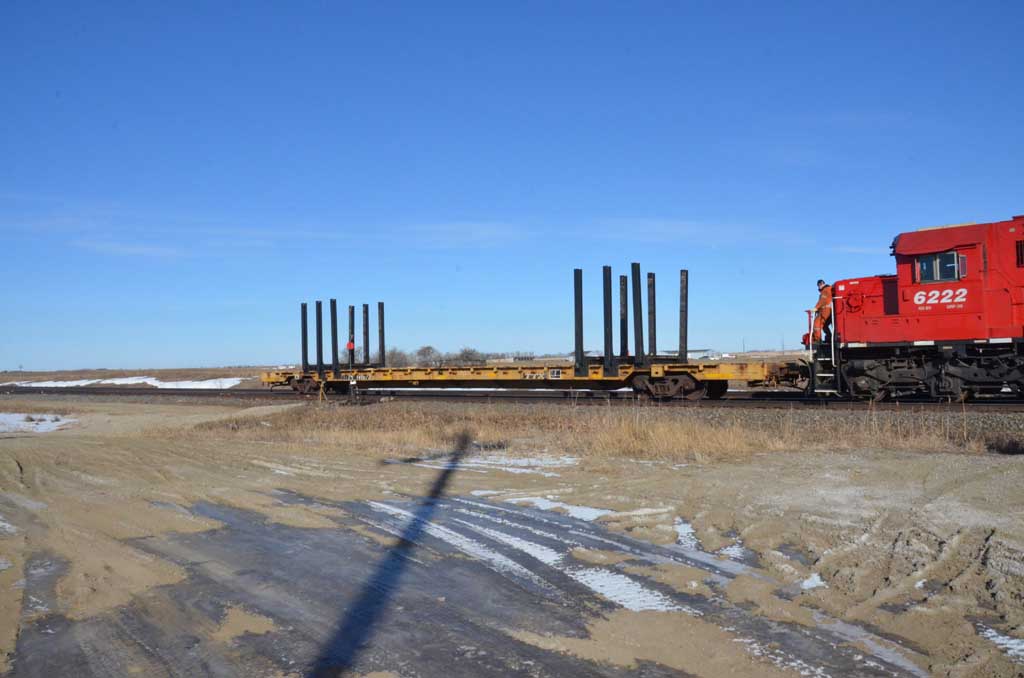

Carsland, Alberta,
March 4th, 2015, Photo by Carson
Wiebe
|
