KRL 701214 - Heavy Duty Flat
Car |
|
Initial |
KRL |
|
Draft Gear |
15 |
|
Number |
701214 |
Inside Length |
|
|
Type |
Heavy Duty Flat Car |
Inside Width |
|
|
AAR
Car Type Code |
F403 |
Inside Height |
|
|
Load Limit |
224,000 lbs. |
Outside Length |
75' 2" |
|
Max Weight on Rail |
286,000 lbs. |
Extreme width
|
10' 0" |
|
LT. WT |
62,000 lbs. |
Extreme Height |
3' 9" |
|
Cu Ft Capacity |
|
Height of extreme width |
3' 9" |
|
Gal. Capacity |
|
Compartments |
|
|
Plate Clearance |
C |
Platform Length |
70' |
|
Mechanical
Designation |
FM |
|
|
|
Built By |
Kasgro Rail Corporation |
 |
Built |
02/2001 |
|
Contract Number
|
|
Re-Built |
|
|
Number Built |
|
|
|
|
|
|
|
 |
 |
|
Kitchener, Ontario,

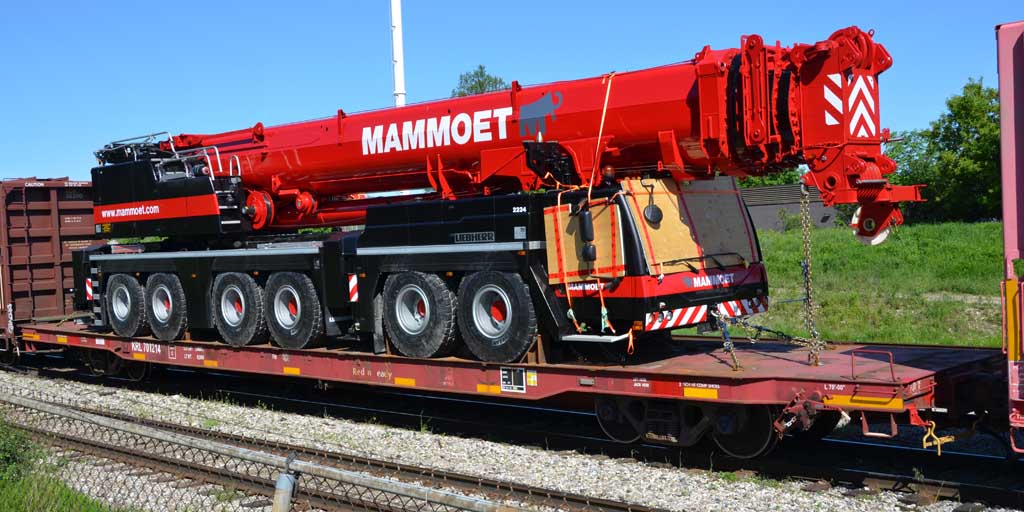

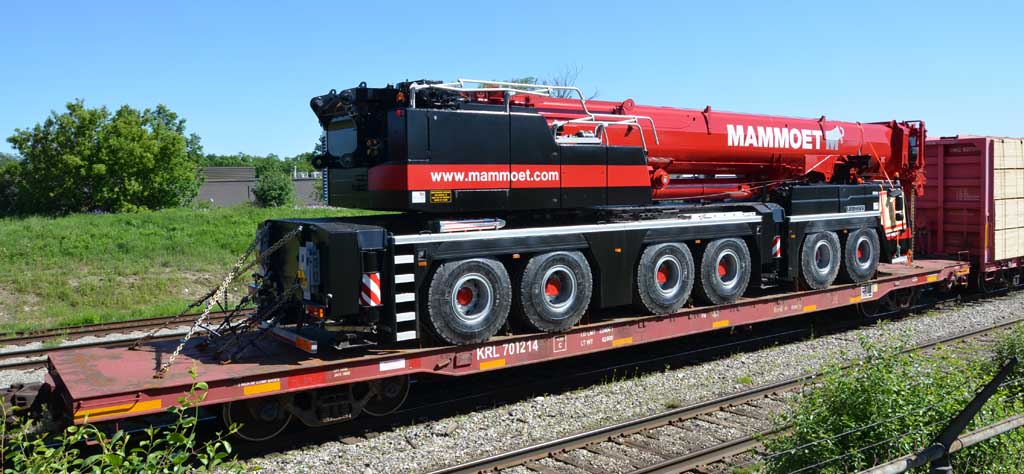

June 4th, 2013, Photo by Carson Wiebe |
