JTSX
54041
Bulkhead Flat Car with Log Bunks |
|
Initial |
JTSX |
|
Draft Gear |
15 |
|
Number |
54041 |
|
Inside Length |
|
|
Type |
Flat Car
with log bunks |
|
Inside Width |
9' 4" |
|
AAR
Car Type Code |
F243 |
|
Inside Height |
|
|
Load Limit |
171,600 lbs. |
|
Outside Length |
73' 4" |
|
Max Weight on Rail |
263,000 lbs. |
|
Extreme width
|
10' 4" |
|
LT. WT. |
91,400 lbs. |
|
Extreme Height |
17' |
|
Cu. Ft. Capacity |
|
|
Height of extreme width |
3' 8" |
|
Gal. Capacity |
|
|
Compartments |
|
|
Plate Clearance |
F |
|
Platform Length |
62' |
|
Mechanical
Designation |
FB |
|
Lessor |
|
|
Built By |
|
|
Built |
|
|
Number Built |
55 |
|
Re-Built |
|
|
|
|
 |
|

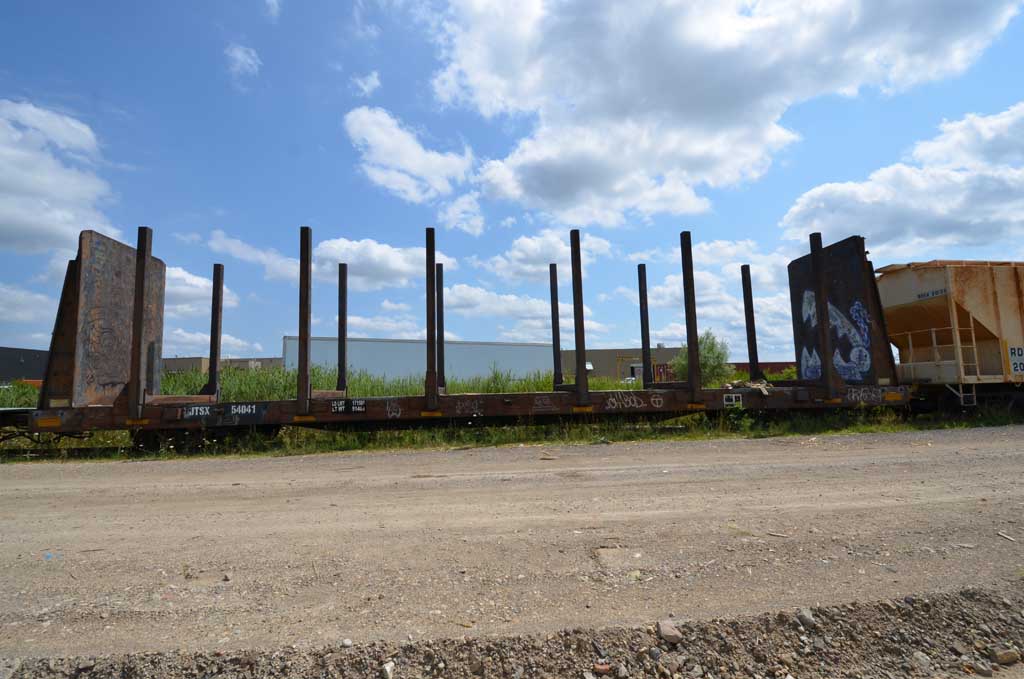

Guelph, Ontario,
8/16/2019, Photo by Carson Wiebe |
 |
|

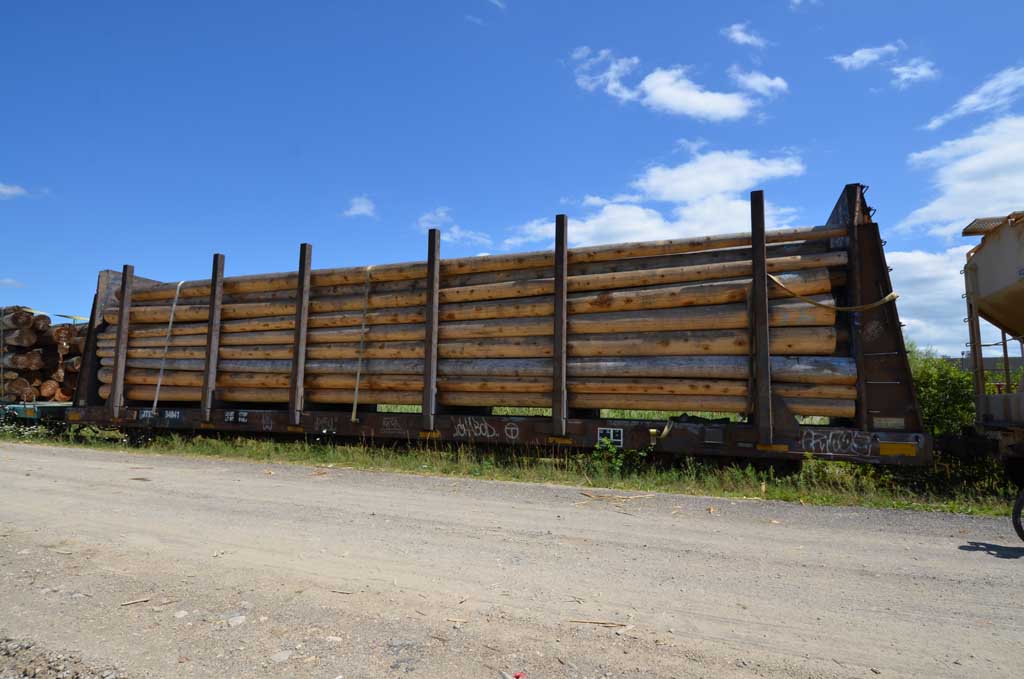

Guelph, Ontario,
8/14/2019, Photo by Carson
Wiebe |
 |
|
CP Alyth Yard,
Calgary, Alberta,
5/23/2019,
Carson Wiebe |
 |
|

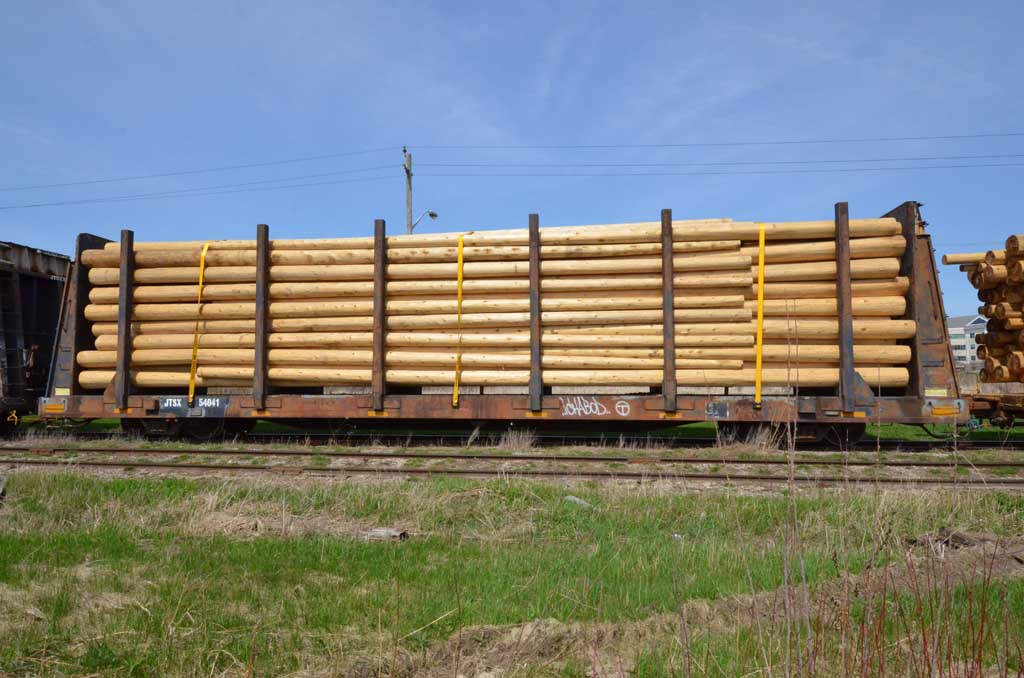

Guelph, Ontario,
5/11/2014, Photo by Carson
Wiebe |
